Date: 19 October 2025
Tag: sPH-CONF-COLDQCD-2025-02
Document: Conference Note
(Back to sPHENIX Public Results page.)
Figure 1

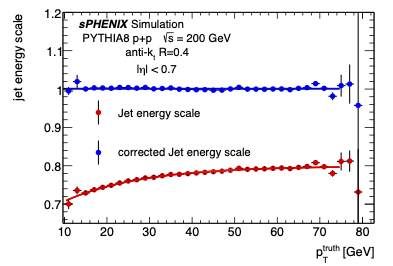

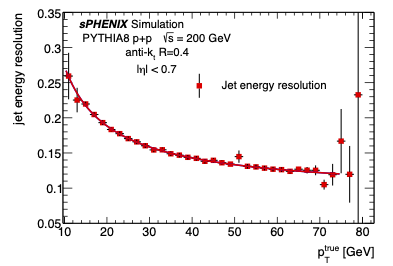

Left figure: Jet energy scale as a function of the true jet transverse momentum before (red points) and after (blue points) applying the jet energy correction. The exponential fit to the jet energy scale and a constant fit to the corrected jet energy scale are displayed as red and blue lines, respectively. Right figure: Jet energy resolution as a function of the true jet transverse momentum. A power law fit to the jet energy resolution is displayed as red line. |
Figure 2

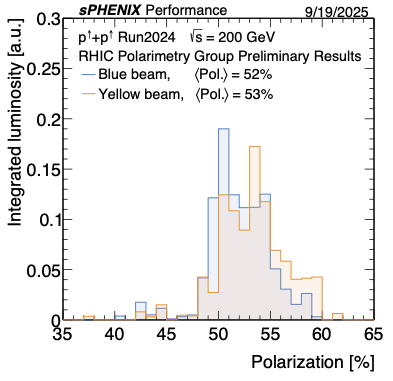

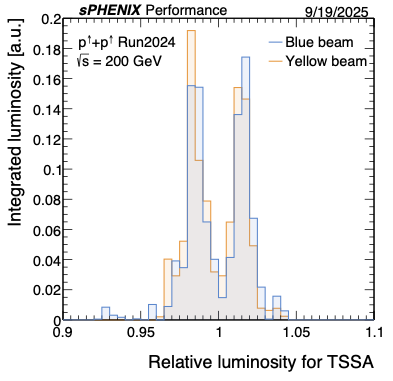

Left: Run-by-run polarization for each beam weighted by the luminosity of each run. Right: Run-by-run relative luminosity for each beam weighted by the luminosity of each run. |
Figure 3

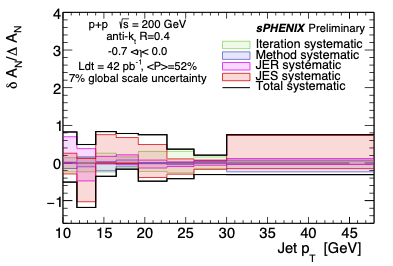

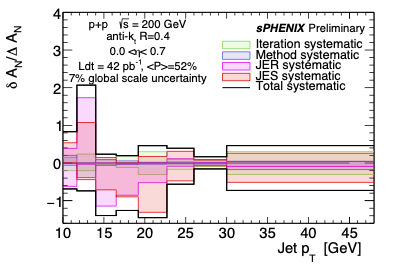

Systematics budget for the various individual and total systematic upper and lower uncertainties relative to the statistical uncertainties as a function of the transverse momentum of the jet. The left figure displays the uncertainties for the backward region, while the right figure shows those of the forward region. |
Figure 4

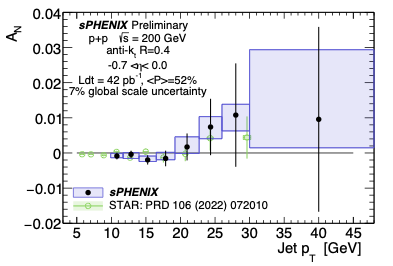

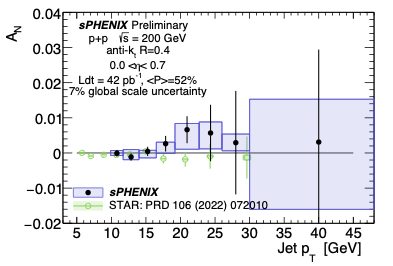

Final transverse single spin asymmetries as a function of the jet transverse momentum in the forward and backward regions (full, black symbols), compared to a recent STAR publication of similar observables using charged particles and electromagnetic calorimetry with a radius of 0.6 (dark-green open circles). The left figure displays the asymmetries for the backward region while the right figure shows those of the forward region. |

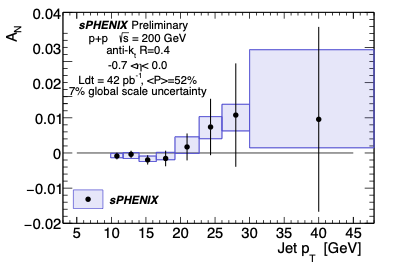

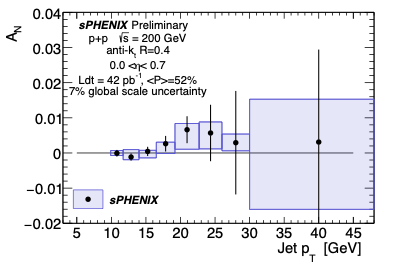

Figure 4 Alternatives
|
